Has been using the X79 platform, demolished and installed in the thieves ship 650D and Yinxin PS07W have tried water-cooled, but always not satisfied, the ultimate retreat of the wind PK314, two cat owners, dust, PK314 The steel plate is thick and dustproof and super good, so I decided to use PK314 as the final chassis, and then I used it for half a year. The result was not a long time good. When I was playing VR at home and a friend of HI in September, the computer suddenly disappeared. The crash, re-boot, suggesting that the CPU is overheated, well, CPU temperature should be no problem with 90 degrees! Then close the CPU temperature protection, forced into the system, the results of the machine card mouse does not move, turn off the machine so that he naturally cools for an hour, re-open directly into the BIOS, see the following scene, the boot temperature directly to the body cold state reached 91 Degrees, pinched the thief ship to cool the two pipes, this may be the CPU or the motherboard is broken.
What to do, no play, but not everyone's pleasure! An East pole speed, speed single I76700K + ASUS Z170I PRO GAMING170I + thief ship DDR4 3000 16GB (8Gx2), more than 1 hour to reach, but this time everyone has something to go, speed up to put home, after the evening came back and rush installed .
After installing the machine to open the machine into the BIOS, boot temperature directly 90 +, people directly collapse, what is the original power is broken. A blood spit died at home. We managed to continue to buy power, bought a silver Xin SFX600 watt power supply, the next day to the future, found that the motherboard power cord is only 30cm out of the motherboard! ! ! ! For the chassis can only be put on the agenda, the chassis did not have more choices, 1 year ago to fancy NCASE M1, and the rest will only buy buy buy!
Chassis purchase processWhen I saw the NCASE M1 chassis accidentally last year, it was a crowd of enthusiasts who designed their own crowdfunding, and then they worked together. They were attracted by their weight and style. The value-friends also had a lot of orders, but they were inconvenient to buy and gave up repeatedly. This time, I am determined to buy directly and write down the purchase process. There is a need for value-friends to refer to.
Chassis parameters will not be taken, the specific site for everyone to view, said several concerns, Chassis 12.6 liters, side 240mm cold row bracket, support integrated water cooling, 2.5-inch thin hard disk / SSD, no fan installed at the bottom Under the circumstances, it can hold 5 pieces. If the fan is installed at the bottom, it can support 4 pieces (must order the line). If the cold side of the row uses 120mm cold plate, you can add two pieces but you need to buy 3.5 to 2.5 frames by yourself. 3.5-inch hard disk can support 3 blocks. Two fans are installed at the bottom of the fan.
NCASE Website
Support direct mail, direct delivery to the mainland after the order.
1. You do not need to register and log in to purchase a website. You can directly add a shopping cart. You can choose the color and whether you need to install an optical drive.
2. The page prompts that there is a corresponding delivery date. Orders placed before September 23 will be shipped on October 12.
3. After adding the shopping cart, enter the shipping address. Remember to fill in Simplified Chinese here. You do not need to fill in Pinyin and English. The compatriots in Taiwan understand it.
4. After completing the agreement, agree to the agreement, and click submit, select paypal payment, payment success on behalf of the order to complete.
5. Paypal will receive a confirmation email from NCASE in the registered email, indicating that it has been ordered successfully.
6. The confirmation email of NCASE will be reconfirmed 2~3 days before the delivery date. If you do not need to change the address, you do not need to reply to the email.
7. The agreed delivery date will be notified by NCASE's email that the shipment has been shipped, but the tracking number will be provided in the last week.
8. After receiving the NCASE email about 4 days later, tell the tracking number. At this time, you can use the tracking number to check on the ESM website.
So brush ah, brush ah, finally brushed the tracking information, but the sunny day
Searched out, if there is a trial in Shanghai Bureau, then it shows that 100% was taxed, honestly, etc. is taxed, and on the 18th received a reminder for money, requesting for customs clearance, providing two ways:
1. To pay 50 yuan fee, on behalf of customs clearance;
2. Go to Welcome 8 to do it yourself.
Looked at the map, do a little bit far from their own, or a set of 50 agents to do it, and ultimately the actual payment of 50 yuan fee + 93 yuan tax release. The 19th post was sent home. Taxes Raiders write a lot of value I do not mention.
Attached to the tax bill and the invoice issued by NCASE, the amount of the invoice was written in less than 2,000 Taiwan dollars, equivalent to more than 600 yuan.
After the arrival of the machine, the box was very small. I took the following few pictures. It was really very small!
Chassis
The rest of the configuration
CPU: I7 6700K
Motherboard: ASUS Z170I PRO GAMING170I
Memory: Thieves Ship DDR4 3000 16GB (8Gx2 bars)
Power Supply: SilverStone is rated 600W SX600-G SFX power supply
Hard Disk: SanDisk Ultra Extreme 240/ Samsung 850pro/intel 600p 512GB
Heat dissipation: Thieves Ship GTX H100
Graphics: Gigabyte G1 980TI
Fan: NF-A91 NF-A124
In front of you, don't mention it with me! Wind way! I have no air in this machine! I only want to fill the fan! fan! fan!

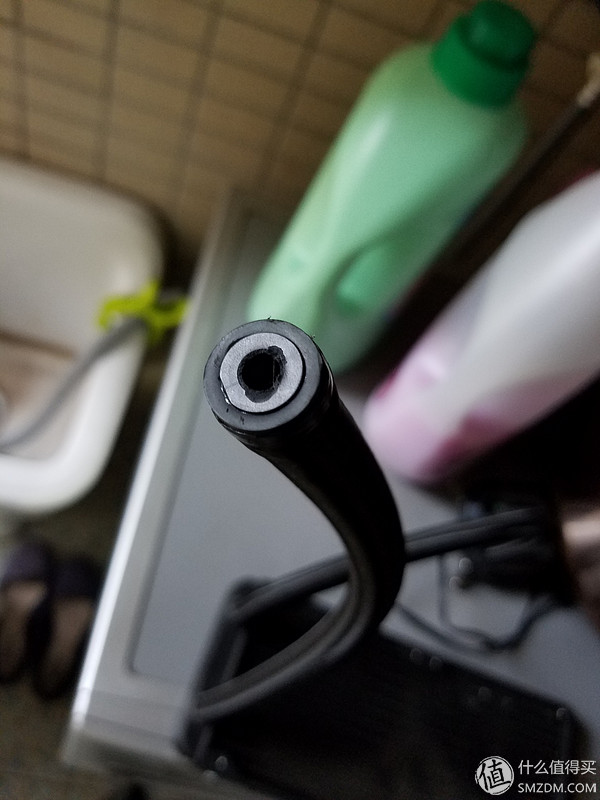

Well, start loading it, and when the main board is put in, it starts to smash the thief, but do you know what happened? ! ! ! Look at the picture! The thief ship tube is too hard, slightly under pressure, broken! ! broken! !
Cry! Cry! Cry! How to do, change the radiator, Jingdong expensive points, Taobao slower, you can only choose to order Jingdong, and for the NH-L9x65, cat fan belief ah!
After all properly installed it, the process is not shown, issued a few key map!
Install heat dissipation, motherboard, power supply and fan! The positive effect, this time is not a custom line, hiding the line is really difficult!
Look at the top, the line tied with a tie.
Positive effect, the front can put two 2.5-inch thin SSD, but you must order the line, otherwise the SATA power cord will be discounted, if you want to buy a SATA power cord 1 point 2 straight can also be resolved, I found late Or I got it. .
From the above point of view, the appearance is not bad, it is a bit difficult to fix the line, especially the direction of the line needs to turn, circle
Insert the graphics card, Gigabyte G1 980TI, length 295mm, this chassis up to 305mm graphics card, so there is no pressure, the graphics card on the market can almost all support, and the three-slot is no problem, the bottom of the fan on it.
Below the graphics card to increase the two fan air, the effect is good, wait for the next test to know.
The graphics card is a bit heavy and is covered with a small circle, otherwise the distance is a bit closer.
On the side of the cold row, put two cat fans into the air, these two fans work well!
After watching the top row of the cold row, there are still a lot of distances, and you can see there is still a lot of room for the cold row.
The effect of the back is this, all hidden in the line!
Put a dust-proof net on the front and the air intake must be blocked
The bottom of the wind put two gauze, the effect is not good, back to be replaced.
The whole machine is installed, put on the shell, so look is not particularly texture!
It looks good and looks good! Drawing effect, joint force work is really good.
The side effect is also very good, the gaps are combined very tightly
Chrysanthemum position put a 9cm fan out of the wind, but I think this may destroy the duct
Find a few references to see the size of it, on the 2 cola height
In his son's toy car, he can put it down properly.
Positive effect
Side effect
Back effect, chrysanthemum
Put it in my corner, stuffy here and play the game!
Compared to Corona, it’s a little higher
The rest is the temperature that everyone is most concerned about. The following tests were conducted at room temperature of 23 degrees without overclocking. The effect of the small steel cannon is generally boring, not ventilated, etc. Here I will take my temperature results.
CPU temperature in standby mode: 30 degrees, graphics temperature 37 degrees.
Fan speed: The bottom and side fans are both 900 rpm, and the 9-inch CPU and outgoing fan speed of 1400 cat fans sound very small.
Under full load, the temperature of the CPU is 76 degrees, and the temperature of the video card is 79 degrees. The effect of the bottom two inlet fans is obvious. The effect of the radiator for the cat's home was surprising to me. It was even better than the H100 of a thieves ship!
Fan speed: The bottom and side fans are all 1440 full speed, CPU fan full speed 2600 rpm, cat fan sound is larger.
I will not say any other conclusions. I would like to conclude that this is a qualified steel cannon. Next I still have turbulent hearts to prepare for water cooling and custom lines! See the next article!
