You are friendly, Dell UP2516D display + XPS9350 Ultrabook + Ep OA-7X support comprehensive report This starts slightly! First talk about the origins of these three treasures, Dell UP2516D monitor purchased in computeruniverse 6.30 plus a U disk with a € 5 coupon € 266.05 no tax to hand in cooperation RMB1980; XPS9350 i7 3K touch screen gold super pole in the 5.14 purchase In ebay gold seller Adorama $1119.99 transfer plus tariff RMB7900 to hand; Ep OA-7X bracket purchased in 618 JD coupon RMB149 to hand. Here I would like to thank Zhang Aunt. It can be said that the three treasures are the lowest prices. Of course, we should also thank the customs officials for their mercy.
Three related boxes are placed here, xps13 is written by myself, and the other two are from other two valued friends. The experience of retort is also similar to them because this article is a usage report and the details of the unpacking are not here. As mentioned, the following three links are very clear, and you are welcome to visit and reward.
First of all, to compare the next UP2516D original stent and OA-7X stent
From the above two sets of figures we can see the difference between the two brackets, OA-7X is a notebook + monitor combination bracket, the advantages: thanks to the upper and lower right and left, right and left, right, left and right 180 degrees, it is also very convenient, The floor space is small; of course, the disadvantages are also quite obvious, and the adjustment is bothersome. UP2516D original bracket above the group diagram shows the maximum angle can be reached up and down, the shortcomings of a contrast is obvious, the upper and lower four angle adjustment limit is larger, before and after the telescopic adjustment can only manually move the bracket, where the right and wrong Staying friends, I neglected to forget to demonstrate the two brackets 360 degree horizontal rotation this stunt, please tap
Here to say a little, when concerned about the OA-7X this bracket found that some of the value of the reaction to hung on the monitor will bow to the phenomenon, we look at the following figure:
This angle is the fixed point on the bottom of the monitor bracket. If you find the monitor head down, take out the hexagon socket in the accessory and tighten it tightly clockwise.
Next is the highlight, since the UP2516D is the protagonist, then of course we must take a good look from the perspective of daily use to show you valued friends, after all, is a professional-grade 2K monitor, the function should be properly developed. Let's take a look at the next few players who participated in the test:
From left to right, ASUS X550V notebook, XPS 9350 3K touch screen, and Lenovo IdeaCentre Q180 mini host.
First take a look at the configuration of three notebooks in order:
Let's take a look at the interface of the UP2516D and the three players:

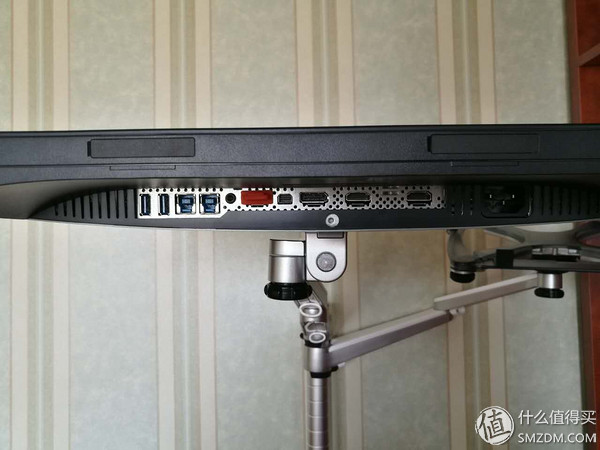

From left to right, USB 3.02, USB3.0 Upstream Interface (KVM) 2, Audio out, HDMI out, mini DP, DP 1.21, HDMI 1.42, and USB 3.02 on the left in the figure below
ASUS X550V video interface: one each for VGA, HDMI
XPS 9350 3K Touch Screen Super Video Interface: Only One ThunderBolt3 (Type-C) Interface
Lenovo IdeaCentre Q180 Mini Host Video Interface: One each for VGA, HDMI
To cook, try to connect the UP2516D's own interface, DP, HDMI, audio interface, and USB 3.0 upstream (KVM) interface in different ways. Test the performance of the three players on the UP2516D, and show you the daily use of the UP2516D. .
Look at the wire I prepared for this test:
UP2516D comes with DP to mini DP cable, because the three players do not have corresponding interfaces, this test is not used
UP2516D comes with USB3.0 (KVM) uplink
Common VGA + HDMI transfer cable: The results are very disappointing ... ... the value of the friends will know behind

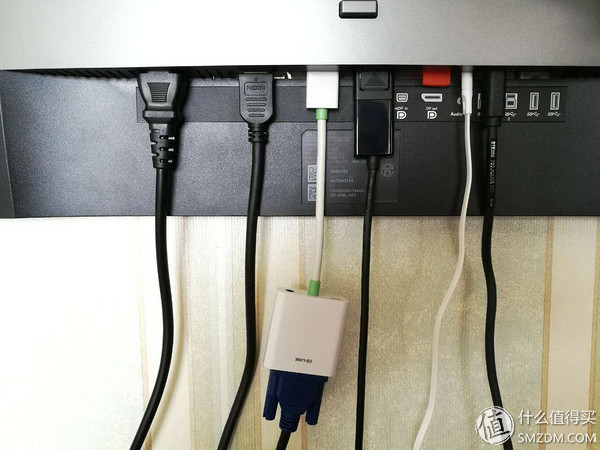

Connection preparation from left to right: Power, HDMI, VGA to HDMI, Type-c to DP, Headphone, USB3.0 Upstream (KVM)
The following test began, first appeared on the ASUS X550V notebook:
First try VGA HDMI connection, the following two are USB3.0 uplink (KVM) and halogen wireless mouse and keyboard receiver
Value-friends can see the VGA to HDMI connection and switch to the corresponding interface, the monitor can not find the video signal, the test failed
After switching to HDMI connection, dual-band display resolution is 1366768, frequency 60Hz
After switching to HDMI connection, the monitor alone displays a resolution of 20481080 and a frequency of 60Hz.
After connecting the headphones, the audio is switched to the UP2516D and the headphones are perfectly output. Value-friends can see a USB cable connected to the left side of the monitor above. It is a hard disk drive. When the USB3.0 uplink (KVM) cable is connected, the interface notebook above the connection can be recognized, and the USB3.0 uplink can be unplugged. (KVM) line, the notebook can not be identified, there is no photo, we can look at the back of the two computers.
Next is the XPS 9350 3K Touchscreen Superbook:
Type-C to DP connection, dual display resolution of 32001800, frequency 60Hz.
Type-C to DP connection with a resolution of 25601440 alone and a frequency of 60 Hz.
USB3.0 uplink (KVM) cable is not plugged in. The hard disk is connected to the left USB3.0 port and cannot be identified.
Plug in the USB3.0 uplink (KVM) cable, and the mobile hard disk is connected to the left USB3.0 interface.
Use XPS 9350 3K touch screen super audio source to play music
After connecting the headphones, the audio is switched to the UP2516D and the headphones are perfectly output.
Finally is the Lenovo IdeaCentre Q180 mini console:
VGA to HDMI connection is switched to the corresponding interface, the monitor can not find the video signal, the test failed
After switching to HDMI connection, the monitor alone displays a resolution of 20481080 and a frequency of 60Hz.
After connecting the headphones, the audio is switched to the UP2516D and the headphones are perfectly output.
The above is a display of three computer connections UP2516D display interface, let's take a look at the control menu of the UP2516D compared with the image display in different modes:
The menu is touch-sensitive, with four touches at the bottom right corner, followed by the display mode, contrast, video signal switching, and control panel from left to right.
The above is a comparison chart of eight modes of display mode switching. Two pictures of each mode, because they do not want to occupy a lot of space, they have done a stitching, and the comparison effect may not be obvious. Please understand that you value friends.
Contrast adjustment panel has no photos, here is the video signal switch panel
Here is the control panel, a total of ten pages have also done a picture stitching, you look like a good friend is probably good, halogen cooking did not study
To Zhang family portrait, cooking daily use combination photo
Written at the end: Since some people have tested and evaluated the display effect and the advantages and disadvantages of UP2516D, halogen cooking will not be repeated here. I have written a bunch of books. I don't know whether you value them well or not. If you have any questions that you don't understand, please feel free to leave a comment. Thank you for your patience at the end. The code is not easy. Welcome
