At the time of school, the chassis brand only knew TT, cool and silver. Always think of the bigger the better the chassis, the more unique the better the model, the more fans the better, the more flash the better. . . At that time, the tall chassis was my favorite.
Heart water box
However, on a certain day in 2012, I suddenly saw the Lianhe Q11. The original chassis can also be so exquisite, and how to see how to harmonize with the monitor. So he did not hesitate to abandon my cold war flames God, into the arms of the joint force Q11.
Once you are in the palace, you can't bear to see it now.
New Favorite - Lian Li Q11
In the twinkling of an eye, another four years have passed and the CPU and motherboard have only been upgraded once. But for a long time, it will always produce aesthetic fatigue, so it is slowly looking for a suitable replacement chassis.
Originally intended to buy ABEE RS07, workmanship values ​​are in line with my requirements, but there are still two issues that have left me with uncertainties.
(1) RS07 is an all-metal architecture, and there is no side-to-side feeling of total force. And across the side, watching the fan in a quiet rotation, feel unique FEEL
(Photo sourced from the Internet)
(2) The structure of RS07 is quite unique. You plug in a USB cable. You must first unload the side plate, and then remove the screws of the fixed frame frame. Then you can pull out the inner frame and plug it out. I feel tired
(Photo sourced from the Internet)
In hesitating, suddenly seeing it, H'z Mk3s, and then ordering the resigned contacts. You say, RS07? She is a good chassis, but we are not suitable together
Enjoy the beautiful pictures taken by the author
(Photo sourced from the Internet, copyright belongs to the author)
(Photo sourced from the Internet, copyright belongs to the author)
(Photo sourced from the Internet, copyright belongs to the author)
Because it is a customized chassis, it is not sold in major shopping sites, and only links to the richest people are available for reference.
Customized chassis options are also more, the glass completely through the left side of the plate, the traditional side through the acrylic, the top handle, alumina column power bracket, USB3.0 interface, front hard drive support, overhead hard drive support can be optional .
In addition, because the author is also outsourcing the processing, so the entire chassis production cycle is relatively long, about 3 or 4 months or so, so the intentional TX must pay attention to this time issue.
Delivery date provided by the seller
I was decided on March 5, because I was busy with other things and I didn't pay much attention until June 7, when the author contacted me to make up the payment. I thought of it, and then I received the goods on June 10.
The case is wrapped in two air bags and it is well protected.
There is a transparent plastic bag inside the air bag.
The following photos were taken on a cloudy day. When I took the photos, I didn’t pay much attention to the light. So the whole thing was dark.
On the front side is a switch and two USB 3.0 ports. In the optional configuration, you can also choose not to use the USB port, leaving only one switch.
Positive 45 degree viewing angle.
Left side glass panel.
The right side is the ordinary chassis side board.
Chrysanthemum 45 degree viewing angle.
Large hollows at the bottom and black feet with shockproof.
Compared with the "value" that just received, it is the size.
The front panel and glass side panels were unloaded.
The front panel is fixed by ball, a total of four pairs.
The right side plate is also unloaded and transparent.
Upgraded power stand alumina column, worth 20 oceans.
The front panel is such a long drop.
Open key close-up.
Accessory box and overhead hard drive bracket.
And my Q11 is under the size (Q11 after the first figure before MK3s; Q11 right after the second figure MK3s).
III: Long Installation
Because of the working relationship and the purchase of accessories, the entire installation process has dragged on for a long time. Let's take a look at it
The purpose of this installation is not to upgrade the computer but to simply move the machine, so there is not much change in the configuration.
My configuration sheet.
Because of the size of the chassis, only radiators less than 140mm can be used. My favorite transformer is 159mm. Obviously it can't be used. It's a pity, but let it be exposed.
Well, go back to business, let's take a look at the hardware.
The CPU and mainboard are still used before. The 3 most commonly used software is browser, office and Potplayer, so i5 is more than enough for me. ASUS M7I can't afford it, but H97I is also good.
My old guys.
The memory was originally intended only to buy the root of the dwarf and it was just fine, but the red comb that happened to see the pirate ship, although it is larger, the single capacity is smaller, the price is slightly higher, but for its value, it's I have tolerate the shortcomings. In a non-famous second-hand site scouring a pair of 4G (8G total capacity), more expensive than buying a single 8G. Smelly enough to pay the price
Because this memory has been discontinued for many years, it failed to find a valid link and gave it a quick look at Jingdong’s expired link.
Pirate ship red comb.
Power still chooses a pirate ship. Am I a pirate ship? There are not many good SFX modules available on the market. Many of the people who fancy the silver FX were reflected in low-load whistle, just in time for the pirate ship's power supply to go public, and it became logical to enter the SF450.

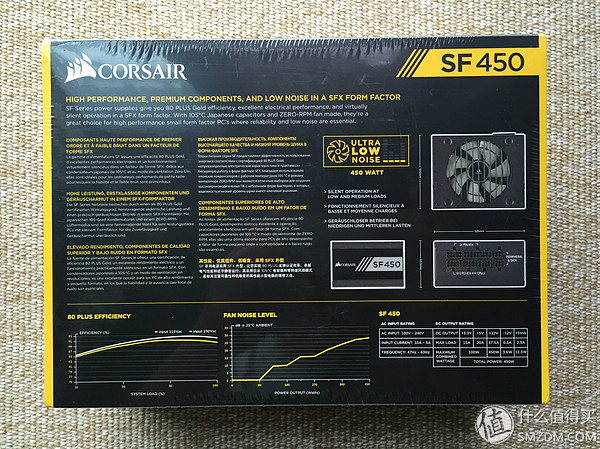

Pirate ship power, Great Wall OEM.
Unpacking and looking at the power supply is really small.
Come compare with the size of the word.
For color matching, this time the fan of the pirate ship was selected. In order to be quiet, the silent version was selected. The pirate ship's fan has AF and SP series. AF is an air flow fan, which has a large airflow and strong exhaust capacity per unit time. It is suitable for chassis fans and can blow out the heat inside the chassis. SP is a static pressure fan, the wind pressure is high, blowing things cool quickly, suitable for blowing CPU radiator and cold row.
Right now, there are two versions of the SP and AF fans, one is the LED light version and the other is the three-color frame version. In order to eliminate the need for light pollution and color matching, I chose the second version.
Two fans, one SP, one AF.
A pile of accessories, screw nuts, dust covers, custom lines.
You can't wait to see the officials. It's all right. We started.
First, the bottom floor is equipped with 2 Yinxin 12cm dust-proof nets, and the nuts are also changed by the way.
Give a screw spacer a close-up.
The front panel installs the hard disk.
Install the overhead hard disk bracket. The bracket can hold four 2.5-inch hard drives, but I only have one
Install memory and heat sink.
The main board is warehousing.
Look at the radiator and memory installation space.
Install the power supply.
Then is the most troublesome phase of the management. Although the panels of the MK3s in all five directions can be removed, it is not easy to look neat and tidy in such a small space. Moreover, the red silver-plated wire I chose this time was much harder than I thought. It added a lot of trouble to me. In the end, it took five or six times to pull back and forth.
The straps are positioned first, then slowly tightened and watched as a mess.
Cut out the extra tie and watch it more neatly.
Did not install the video card, feel the space below, and quickly put my Ferrari into it.
It was found that the chassis did not come with a PCI block when it was fast-loaded, so if you didn't install a video card, you would have two holes behind. I quickly contacted the seller. The seller stated that I was the first person he met to purchase the chassis without the graphics card. In order to show “respectâ€, he directly transferred me 12 bucks to let me rush to the Mayun home. Impressed
Did you see the two holes?
Can only buy the following kind of block.
At the end of the day, performance testing is not done. After all, this is not a small steel cannon. The previous temperature map is enough.
It took two weeks to install the machine. This article dragged on for another two weeks, finally came to an end, and finally talked about the advantages and disadvantages of this chassis.
advantage:
Customized chassis, with many options;
The shape is simple, the appearance of the atmosphere, will not fall behind ten years later;
Excellent design, five side panels are removable, easy to manage the line;
Small chassis large capacity, last GTX970, second small steel gun.
Disadvantages:
Long custom cycle, relatively high price;
Chassis does not come standard with a video card;
Can only use SFX power, the price is higher than the ordinary power supply;
After all, the small chassis has limitations on the height of the heat sink and the length of the graphics card.
THE END, E Total Rusty Giant Set (Keycap) Town House
